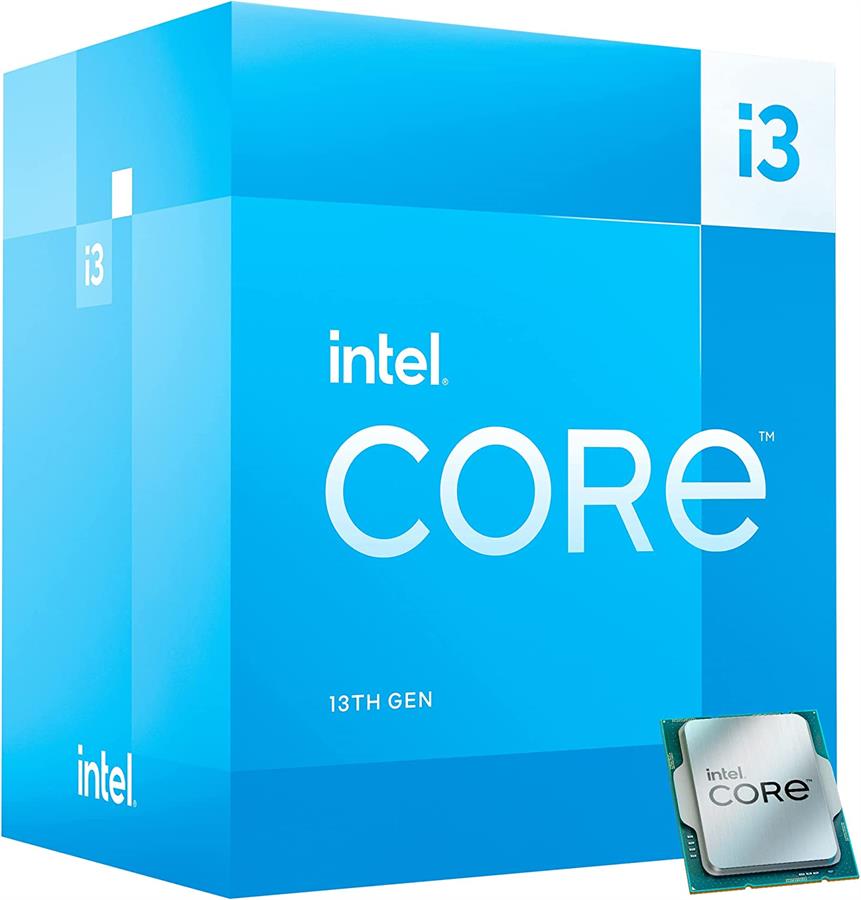

- Product Collection13th Generation Intel® Core? i3 Processors
Code NameProducts formerly Raptor Lake
Vertical SegmentDesktop
Processor Number i3-13100
Lithography Intel 7
Use Conditions PC/Client/Tablet
CPU Specifications
Total Cores 4
# of Performance-cores4
# of Efficient-cores0
Total Threads 8
Max Turbo Frequency 4.50 GHz
Performance-core Max Turbo Frequency 4.50 GHz
Performance-core Base Frequency3.40 GHz
Cache 12 MB Intel® Smart Cache
Total L2 Cache5 MB
Processor Base Power 60 W
Maximum Turbo Power 89 W
Supplemental Information
Marketing StatusLaunched
Launch Date Q1'23
Embedded Options Available Yes
Memory Specifications
Max Memory Size (dependent on memory type) 128 GB
Memory Types Up to DDR5 4800 MT/s
Up to DDR4 3200 MT/s
Max # of Memory Channels 2
Max Memory Bandwidth 76.8 GB/s
Processor Graphics
Processor Graphics ? Intel® UHD Graphics 730
Graphics Base Frequency 300 MHz
Graphics Max Dynamic Frequency 1.50 GHz
Graphics Output eDP 1.4b, DP 1.4a, HDMI 2.1
Execution Units 24
Max Resolution (HDMI)? 4096 x 2160 @ 60Hz
Max Resolution (DP)? 7680 x 4320 @ 60Hz
Max Resolution (eDP - Integrated Flat Panel)? 5120 x 3200 @ 120Hz
DirectXx Support 12
OpenGLx Support 4.5
OpenCLx Support 3.0
Multi-Format Codec Engines 1
Intel® Quick Sync Video Yes
Intel® Clear Video HD Technology Yes
# of Displays Supported ?4
Device ID0x4692
Expansion Options
Direct Media Interface (DMI) Revision4.0
Max # of DMI Lanes8
Scalability1S Only
PCI Express Revision 5.0 and 4.0
PCI Express Configurations ? Up to 1x16+4, 2x8+4
Max # of PCI Express Lanes 20
Package Specifications
Sockets Supported FCLGA1700
Max CPU Configuration1
Thermal Solution Specification PCG 2020C
TJUNCTION 100°C
Package Size45.0 mm x 37.5 mm
Advanced Technologies
Intel® Gaussian Neural Accelerator 3.0
Intel® Thread DirectorNo
Intel® Deep Learning Boost (Intel® DL Boost) Yes
Intel® Speed Shift Technology Yes
Intel® Turbo Boost Max Technology 3.0 ? No
Intel® Turbo Boost Technology ? 2.0
Intel® Hyper-Threading Technology ? Yes
Intel® 64 ? Yes
Instruction Set 64-bit
Instruction Set Extensions Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2
Idle States Yes
Enhanced Intel SpeedStep® Technology Yes
Thermal Monitoring Technologies Yes
Intel® Volume Management Device (VMD) Yes
Security Reliability
Intel® Threat Detection Technology (TDT)Yes
Intel® Standard Manageability (ISM) ? Yes
Intel® Control-Flow Enforcement Technology Yes
Intel® AES New Instructions Yes
Secure Key Yes
Intel® OS GuardYes
Execute Disable Bit ? Yes
Intel® Boot Guard Yes
Mode-based Execute Control (MBEC) Yes
Intel® Virtualization Technology (VT-x) ? Yes
Intel® Virtualization Technology for Directed I/O (VT-d) ? Yes
Intel® VT-x with Extended Page Tables (EPT) ? Yes
